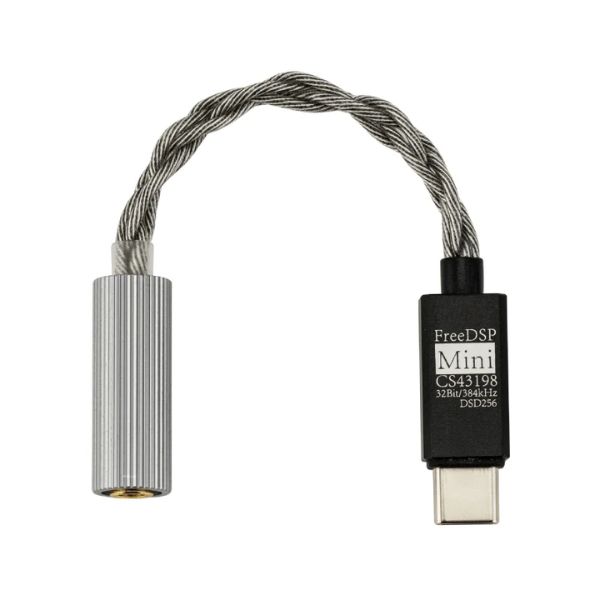

MOONDROP FreeDSP Mini Portable USB-C DAC & AMP with CS43198

MOONDROP FreeDSP Mini Portable USB-C DAC & AMP with CS43198 by Moondrop is part of our AMP & DACs range, at Giggly Gadgets for ৳4,400. It is a genuine product with warranty support where the brand offers it. Order online and pay cash on delivery anywhere in Bangladesh.

MOONDROP FreeDSP Mini Portable HiFi DAC & Amplifier

The MOONDROP FreeDSP Mini is a compact portable USB-C DAC and headphone amplifier built for HiFi listeners who want high-resolution decoding, powerful DSP tuning, and easy everyday portability. Powered by the Cirrus Logic CS43198 DAC chip, it supports PCM playback up to 32-bit/384kHz and DSD256 while delivering excellent measured audio performance from a miniature form factor.

Unlike a basic USB-C audio dongle, the FreeDSP Mini adds an advanced interactive DSP ecosystem. Users can adjust EQ parameters, apply target frequency-response curves, explore community-created tuning profiles, and customize compatible headphones or IEMs through MOONDROP’s web-based and Android tuning tools.

Key Features

• Cirrus Logic CS43198 flagship DAC chip
• PCM decoding up to 32-bit/384kHz
• DSD256 decoding support
• Up to 127dB dynamic range
• THD+N as low as 0.00017%
• Maximum 80mW + 80mW output power at 16Ω
• Up to 2Vrms output amplitude
• Professional web-based DSP tuning
• One-button EQ setting
• Continuously updated frequency-response library
• Community tuning profile sharing and downloading
• 3.5mm single-ended headphone output
• CTIA microphone support
• USB-C wired connectivity
• Driver-free operation with compatible devices

CS43198 High-Performance DAC

The MOONDROP FreeDSP Mini uses the Cirrus Logic CS43198 digital-to-analog converter, giving the compact dongle support for high-resolution digital audio. It can decode PCM audio from standard music formats up to 32-bit/384kHz as well as DSD256.

This makes the FreeDSP Mini suitable for lossless music streaming, locally stored Hi-Res audio, IEM listening, and portable setups where a dedicated DAC can provide more flexibility than a standard phone or laptop headphone output.

Reference-Level Audio Performance

Despite its miniature size, the FreeDSP Mini offers impressive measured performance. MOONDROP rates the device for up to 127dB dynamic range and THD+N as low as 0.00017% under specified testing conditions.

Maximum output is rated at 80mW + 80mW into 16Ω, with an output amplitude reaching up to 2Vrms. This provides enough capability for many efficient IEMs and portable headphones without requiring a larger desktop amplifier.

Continuously Updated Frequency Response Library

One of the most useful features of the MOONDROP FreeDSP Mini is its integrated frequency-response curve library. The available curves can be used as either an original headphone response or a target response when creating a custom tuning profile.

Users can select a suitable curve, make further adjustments, and experiment with different tuning targets according to their listening preference. MOONDROP continues to expand the available frequency-response database, providing more options for compatible headphones and IEMs over time.

One-Button EQ Setting

The FreeDSP Mini makes advanced EQ easier for users who do not want to manually configure every filter. Through the supported MOONDROP tuning platform, users can select or upload an original frequency-response curve and a preferred target curve, then apply the adjustment using the one-button EQ function.

Advanced users can still manually control parameters such as filter type, frequency, gain, and Q value, providing significantly more tuning flexibility than a conventional USB-C DAC dongle.

Professional Web-Based Tuning

MOONDROP provides a dedicated web tuning interface for more detailed DSP configuration. The browser-based platform gives users access to frequency-response data, target curves, EQ controls, and community tuning profiles from a compatible computer.

The web interface is designed to offer more precise control than the mobile interface, making it useful for enthusiasts who want to carefully tune their IEM or headphone response.

Tuning Sharing and Download Community

The FreeDSP ecosystem includes a community system where compatible tuning profiles can be shared and downloaded. Users can explore tuning created for different headphones and IEMs, try alternative sound signatures, and save their preferred settings.

This gives the FreeDSP Mini an important advantage over fixed-output DACs, as users can change the sound profile without replacing their existing earphones or permanently modifying the hardware.

3.5mm Output with Microphone Support

The MOONDROP FreeDSP Mini features a 3.5mm 4-pole single-ended headphone output with CTIA microphone support. Compatible IEMs and earphones equipped with an in-line microphone can therefore retain microphone functionality when connected through the device.

This makes the FreeDSP Mini practical not only for music but also for gaming, online communication, voice calls, video meetings, and other everyday audio applications.

USB-C Wired Connectivity

The FreeDSP Mini connects directly through USB-C and works as a wired digital audio device with compatible smartphones, tablets, laptops, and computers. Its driver-free design makes setup straightforward on supported systems.

A wired connection also avoids Bluetooth compression and wireless transmission delays, making the device suitable for users who prioritize consistent audio quality and low-latency playback.

MOONDROP FreeDSP Mini Specifications

MOONDROP FreeDSP Mini Price in Bangladesh

The MOONDROP FreeDSP Mini price in Bangladesh makes it an attractive choice for IEM and headphone users who want more than a basic USB-C audio adapter. With its CS43198 DAC, PCM 32-bit/384kHz and DSD256 decoding, powerful DSP system, frequency-response library, community tuning support, and compact design, it offers an unusually flexible portable HiFi setup.

You can buy the MOONDROP FreeDSP Mini in Bangladesh from Giggly Gadgets for a compact USB-C DAC and amplifier solution designed for HiFi music, IEMs, headphones, gaming, and customizable everyday listening.
